Incredible as it may seem, machine and structural vibration (or at least a large part of it) can be detected in a video recording with incredible resolution. Our unique video analysis algorithms make it possible to detect micro-movements and convert these movements into thousands of reliable vibration signals from just one video. In addition, with our software it is possible to perform motion magnification, making it possible to visualize vibration in ways that the human eye can’t see.
The Looking Glass Technique for Motion Magnification
This new technique, named The Looking Glass technique, saves a huge amount of man-hours in studies that were even impossible before. Inspired by the iconic U-2 Dragonlady Spy-plane which has flown high altitude reconnaissance missions worldwide for more than 60 years Dragon Vision® allows you to see what many cannot and take the necessary actions to eliminate the threat to your machines, and facilities. Dragon Vision® is available for Microsoft Windows® as well as the Apple’s iOS operating systems.
The future of vibration analysis has arrived. Learn what the Looking Glass technique is capable of.
What is Dragon Vision®?
Dragon Vision® motion magnification technology is a vibration analysis software that tracks very small movements within ordinary video recordings. Through complex algorithms, Dragon Vision® compares each one of the frames of the video looking for microscopic movements of specific points. Later, it subsequently converts the results into vibration signals. In fact, Dragon Vision® can detect thousands of vibration points in a single video. Thus, making it an ideal tool for various types of vibration analysis that would otherwise take a long time to complete.
What Kind of Camera Do I Need for Dragon Vision®?
Any camera works for Dragon Vision® for Windows. Dragon Vision® for iOS utilizes the onboard camera from your iOS device and thus is limited to processing videos created within the same iOS device. Although, the better the quality of the recording, the better the results. In fact, tests made with a camera of an iPhone XS with slow motion recordings at 1 meter distance showed a resolution in amplitude of 0.1 thousandths of an inch (2.54 microns) and 120 Hz frequency (7,200 CPM). Which is very useful for 95% of common machines. Did you know that you have such a powerful vibration analyzer in your pocket?
What Kind of Failures Can I Detect Using Motion Magnification?
There are many failures that can be detected with this technique. Mainly those related to low frequencies and phase. For example:
- Imbalance
- Misalignment
- Mechanical Looseness
- Bent Shaft
- Eccentricity
- Resonance
- Natural Frequencies (By bump test)
- Electrical Noise
Which Tools Do I have Inside Dragon Vision®?

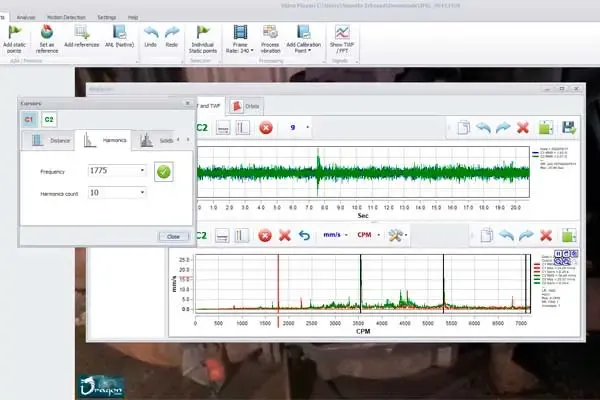

Dragon Vision® allows you to use a wide range of vibration analysis tools. View the waveform and FFT of each point you detect in your video and use the most common vibration analysis tools such as:
- Harmonics
- Sidebands
- Band filters
- Windowing options
- Markers on the signal
And many more.

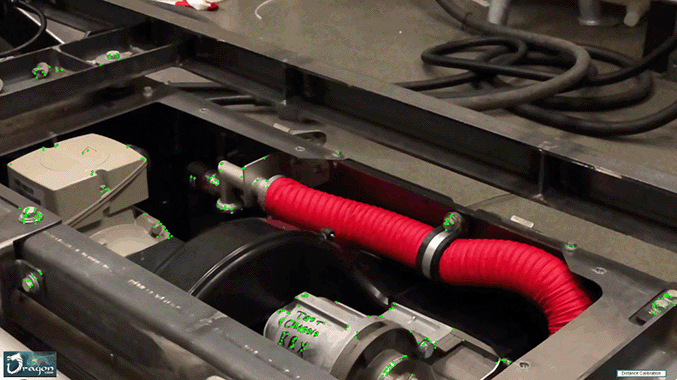

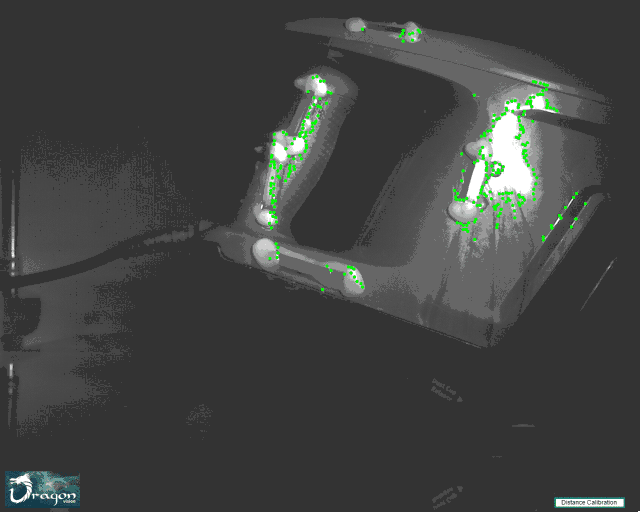

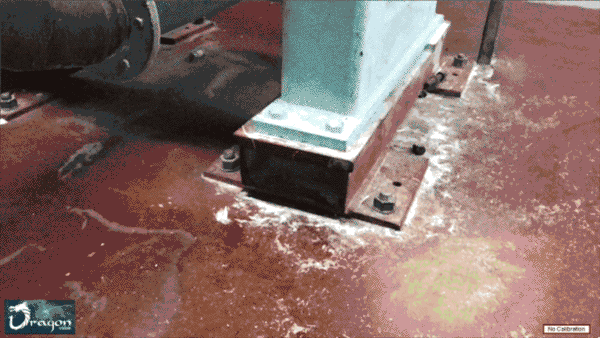

Case Studies: Are You Ready To See The Unseen?
Get your Dragon Vision® today!
More Options for Vibration Analysis
- Triaxial Accelerometer
- Full bandwidth 10kHz
- Long distance range up to 20m
- Stainless steel housing
- Operation temperature up to 185ºF (80ºC)
- Ideal for Real Life ODS & Route Based Data Collection
- Monoaxial Accelerometer
- Full bandwidth 10kHz
- Ultra low-noise accelerometer
- Long distance range up to 15m
- IP67 Grade
- Li-ion Rechargeable Battery
- Ideal for Real Life ODS & Route Based Data Collection
- Vibration Analysis + Dynamic Balancing
- All DigivibeMX tools in the one place
- Wired or Wireless, your choice
- Use it on up to 3 different computers
- Compatible with PHANTOM
- Connect to the cloud and save your data
- Machine Learning models for a batter analysis
- ODS analysis
