These vibration sensors make it possible to monitor the condition of your machine very easily. The ease of mounting and the absence of cables make them ideal for quick and cost-effective installations. PHANTOM® wireless vibration sensors send waveforms and spectra, reaching a bandwidth of 10 kHz and up to 12800 lines of resolution.
To save battery, PHANTOM® sensors also send RMS values in velocity (internal integration) and have an internal alarm that users can remotely program to wake up in case of high vibration.
PHANTOM® Condition Monitoring System
Condition Monitoring Sensors - Transmit Spectra Wirelessly

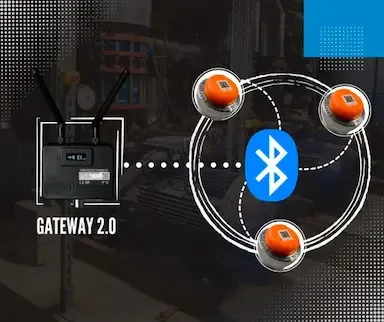

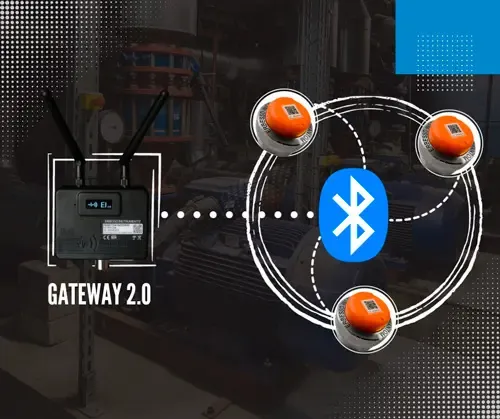

PHANTOM® condition monitoring sensors are capable of sending FFT spectra and waveforms through BLE 5.0 wireless protocol. In return, they consume very little energy and achieve distances of up to 100 meters in line of sight or 50 meters with intermediate walls (these distances depend on the thickness of the walls)
PHANTOM® condition monitoring sensors have a bandwidth of 10 kHz and amplitude range of + -8G configurable to up to + -32 G. Excellent for detailed vibration analysis. Additionally, spectrum interval is also adjustable. To further conserve battery life, configure your wireless vibration sensors to send data in intervals ranging from every 10 to every 1440 minutes (24 h).
Internal alarm
Wake Up Your Condition Monitoring Sensors with High Vibration / Internal Integration
Our wireless condition monitoring sensors for vibration spend asleep 95% of the time in order to extend their battery life. However, they have an internal processor capable of measuring the vibration every 30 seconds and integrating it to assess whether it is outside the configurable permissible limits. In case of finding vibration values above the threshold, PHANTOM® will wake up and immediately and send an alarm signal to the cloud that can also reach your mobile phone if you wish.
Once the alarm has been sent, PHANTOM® will not send another alarm unless it detects a vibration value greater than 25% of the previous value
Built to last
Condition Monitoring Sensors with Great Battery Life
The battery incorporated into the sensor is meticulously engineered to provide an extended lifespan, allowing it to endure and facilitate up to an impressive count of 65,000 measurements. However, this endurance, may be subject to fluctuations based on factors such as the specific manner of employment, prevailing working temperatures, and even the spatial gap between the sensor and the gateway.
Moreover, an advantageous feature of this battery is its complete replaceability, which significantly bolsters the longevity of the sensor itself. By offering the flexibility to swap out the battery when needed, the sensor guarantees the safeguarding of your valuable investment, ensuring that its utility and effectiveness are upheld for an extended duration.

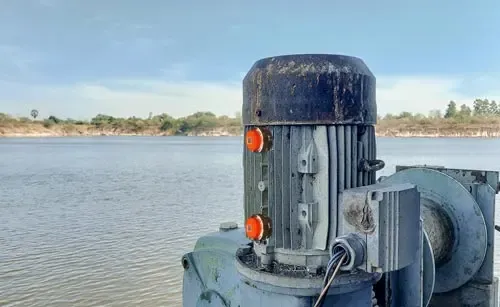

Condition Monitoring Sensors - Designed for Exterior and Interiors

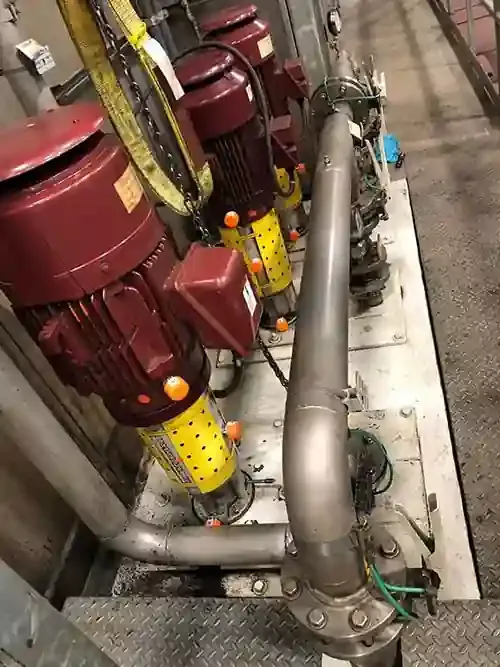

Our wireless condition monitoring sensors are meticulously designed for permanent installation, allowing them to effectively withstand sun and rain exposure while adhering to the stringent IP69 standards. In addition, what sets us apart is the added advantage of a highly convenient and repositionable base plate. This ingenious feature enables precise alignment of the sensor axes with your machine, ensuring the most accurate readings possible.
Moreover, by securely attaching the base plate to your machine using top-quality epoxy glue, or using the 1/4 - 28 UNF screwing of the vibration sensor, we offer a seamless and dependable monitoring solution that guarantees optimal machine performance and longevity
Integrated Temperature
Our wireless condition monitoring sensors include an internal temperature meter that will serve 2 purposes. Bring information to the temperature trending of the machine and alert when the machine is outside the configured levels. Furthermore, it will immediately send an alert if the sensor detects that it is in danger because of the temperature.
The sensor has an operating range of -10º C to 85º C and the range can be extended with appropriate thermal insulators.
The PHANTOM® family
Meet the PHANTOM® Vibration Monitoring Sensors
Wireless Vibration Sensor EPH-V11E:
- 10kHz Fmax
- Full waveform and spectrum data
- Programmable internal RMS trigger
- Configurable Sample rate: 25600 Hz max
- Selectable Resolution lines: 6,400 & 12,800
- Up to 65,000 measurements
- Configurable Velocity Alarms
- IP69 protection grade
- Multiple recording options Including on demand

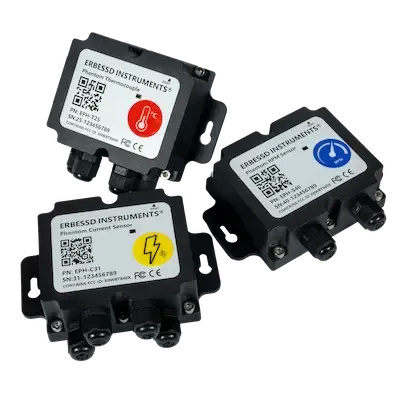

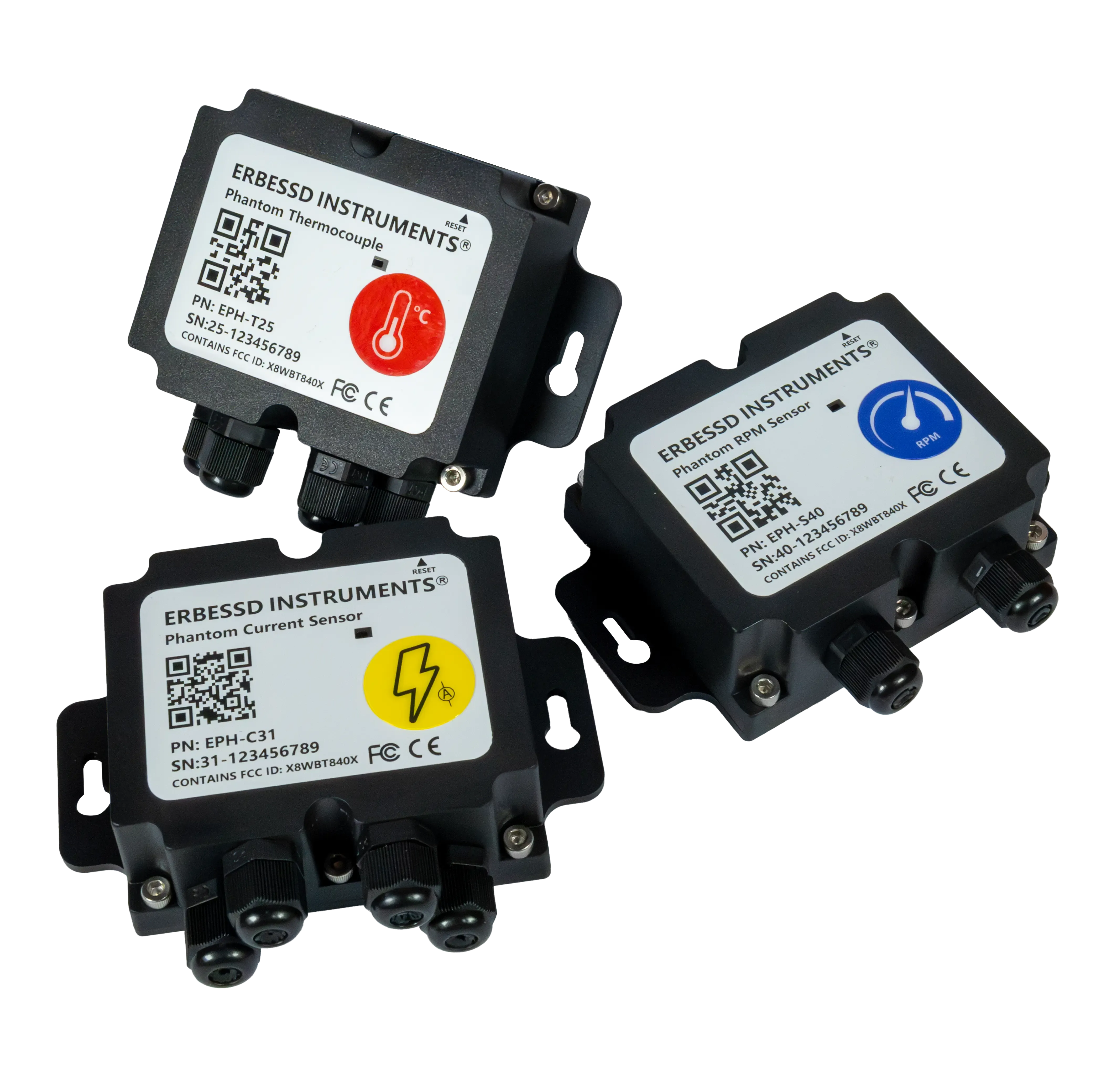

- Range of -210° to 1800° C
- Measures temperature for object and ambient
- Connect any type of Thermocouple
- Configurable Alarm value
- Standby mode and long battery life
- IP67 Protection
- 2 Replaceable LiON AA batteries
- Measures temperature for object and ambient
- Measure Range from -70 to +380°C
- Configurable Alarm value
- Standby mode and long battery life
- Configure your sensor using your mobile
- IP67 Protection
- Measures 4-Phase current simultaneously
- Sends every 5min the max. value of a 15s reading
- Compatible AC Split-core Clamps (50A, 100A, 250A, 500A)
- Configurable Alarm value
- Standby mode and long battery life
- 2 Replaceable LiON AA batteries
- IP67 protection
- Switching Speed up to 600,000 RPM
- Speed + Vibration sensor integration
- Standby mode and long battery life
- Configurable Measurement Interval
- Configurable Alarm value
- 2 Replaceable LiON AA batteries
- IP67 protection
- Measures 2 Channels simultaneously
- Connect your accelerometer, proximeter or velocimeter
- Very Easy to install
- Configurable Alarm value
- Standby mode and long battery life
- IP67 protection
- Measures 4 Channels simultaneously
- Compatible with any 4-20mA sensor output
- Very Easy to install
- Configurable Alarm value
- Standby mode and long battery life
- IP67 protection

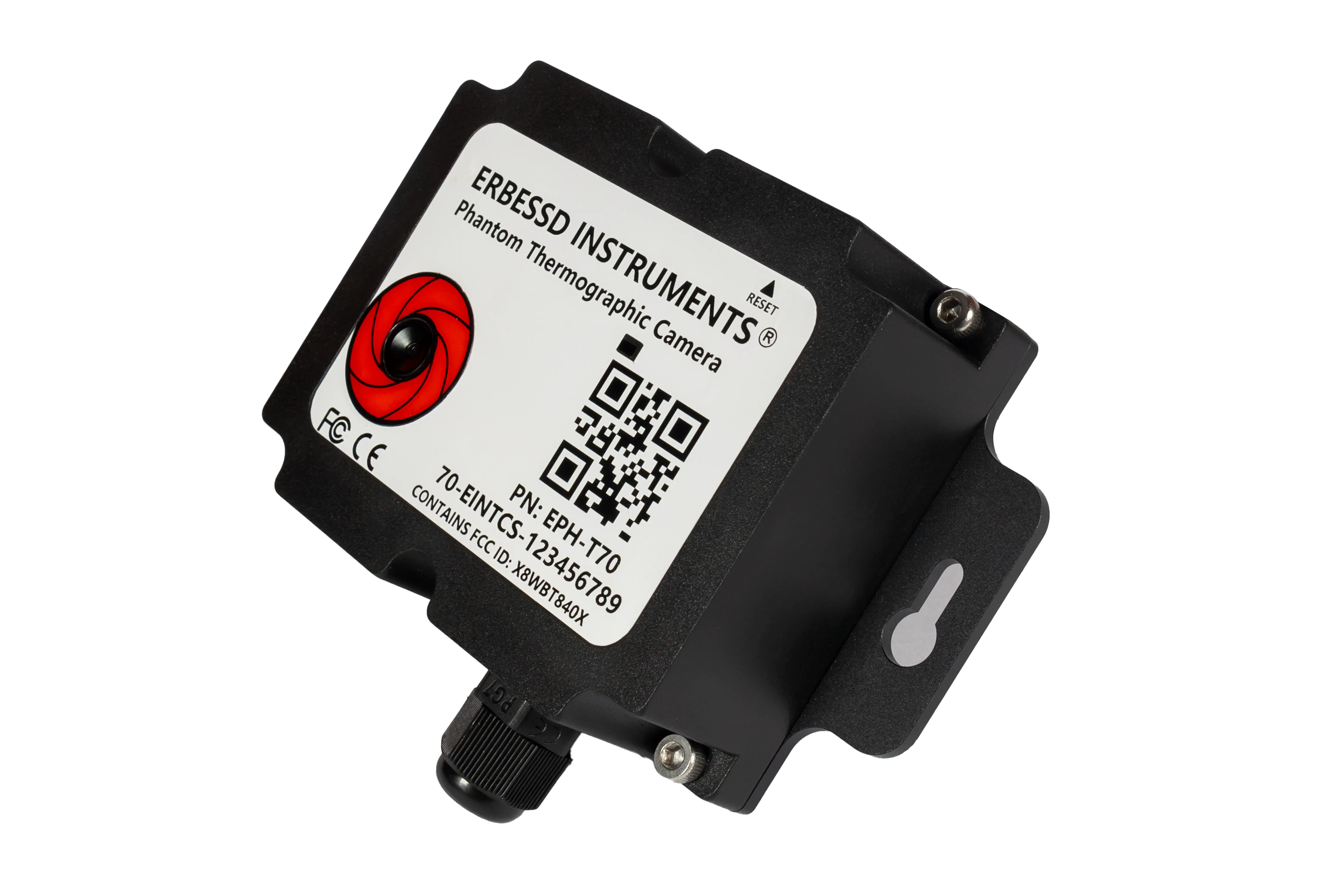

Meet the PHANTOM® Thermographic Camera
With the phantom Thermal Camera, you can accurately measure the temperature of any surface within a one-meter range.
Software
Condition Monitoring Sensors Application for Windows
The Digivibe MX® vibration analysis application is compatible with all of our PHANTOM® condition monitoring sensors. Thus, Digivibe MX® is able to connect to the cloud or to any local database to analyze the data sent by your PHANTOM® sensors.
Digivibe MX® is an application dedicated to the analysis of vibrations, trends, bearings and even 3D simulations. Additionally, with Digivibe MX® you can configure all your sensors in a fast and intuitive way.
Mobile Application for PHANTOM® Condition Monitoring Sensors
The WiSER VIBE® app handles PHANTOM® condition monitoring sensors information as well as most of the information related to vibration analysis. You should use WiSER VIBE® if you desire to:
Receive notifications of alarms on your cell phone when the vibration of your machines exceeds the acceptable level.
Analyze the vibration spectra in your phone. You can view waveforms and spectra in all available parameter such as velocity, displacement, or acceleration envelope in order to fully analyze your bearings or gearboxes.
Analyze the trends and statistics of your machines through graphics created specially to facilitate the detection of abnormal behavior.
Web Application for PHANTOM®
We created EI-Analytic™ so that you can view your machinery without having to install any additional programs. Just log in and review your trends, statistics and spectra. Additionally, you are able to change the configurations from the site, as well as checking battery life of all your condition monitoring sensors.
Download Drivers for PHANTOM® Sensors
Developers can adapt PHANTOM® sensors to their own systems through PHANTOM® API. This way, you can have PHANTOM® sensors adapted to your own platform and even connect them to third-party systems like Scada.
Portable
Interested in Real Time Wireless Accelerometers?
- Monoaxial Accelerometer
- Full bandwidth 10kHz
- Ultra low-noise accelerometer
- Long distance range up to 20m
- IP67 Grade
- Li-ion Rechargeable Battery
- Ideal for Real Life ODS & Route Based Data Collection
- Triaxial Accelerometer
- Full bandwidth 10kHz
- Long distance range up to 20m
- Stainless steel housing
- Ideal for Real Life ODS & Route Based Data Collection
- High Range & High Sensitivity
- MEMS type accelerometers (100 mV/g)
- 6400 Resolution Lines
- 3 Simultaneous Vibration Recording
- Off & On Route Recording
- Compatible only with WiSER VIBE® app
- 50m Distance Range
