Condition Monitoring Thermal Camera

A Thermal Camera allows us to detect infrared radiation that is impossible to see with the naked eye. This is often a great advantage to avoid failures in our machinery, as temperature non-uniformity usually indicates a fault or a critical point.

Industrial maintenance, electrical panel monitoring, construction analysis, electronic circuits design, and manufacture are just a few of the multiple applications for this instrument.

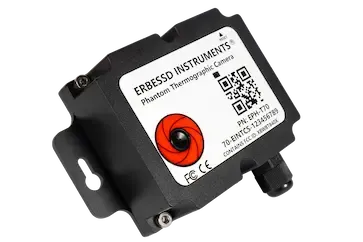

With the PHANTOM® Thermographic Camera, you can accurately measure the temperature of surfaces within 1-meter distance. The best wireless condition monitoring system worldwide, PHANTOM®, now gives you this powerful tool. Keep track of your machines’ temperature through infrared images. Locate pixels and create trends from them.

PHANTOM® Thermographic Camera Main Features

BLE 5.0 communication
IP54 protection
1 to 2 years of battery
1 to 16 frames to capture
Measurement temperature range from -40 to 300 °C (-40 to +572 °F)
Operating temperature range from -40 to +75 °C (-40 to +167 °F)
Configurable send interval data, from 5 to 720 minutes
Captures a picture or a GIF

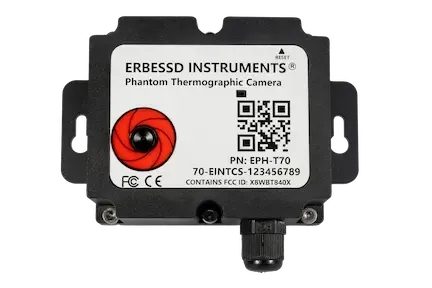

PHANTOM® Thermographic Camera

Convenience

Sometimes it is just too difficult to place sensors and wires all the way from a machine to a control room. This wireless sensor can be placed anywhere within the range.

Compatibility

The PHANTOM® Thermographic Camera works with the PHANTOM® Standard Gateway, it’s compatible with the Digivibe MX® windows application, the EI-Analytic™ web platform, and the PHANTOM® Manager app for iOS and Android.

Security

The signal from the PHANTOM® sensors is encrypted, which ensures the reliability of the information and the security of your data.

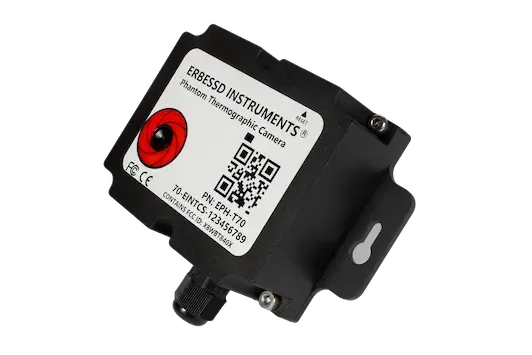

Start Measuring Your Machine’s Temperature

The PHANTOM® Thermographic Camera has everything you need to start collecting data without the need of additional accessories. Place the PHANTOM® up to 1 m from the object and track the temperature.

Add it to your measurement point through Digivibe MX® or EI-Analytic™ and you will be ready to monitor your machines.

Analyze Your Thermal Camera Data

Easily access your data through Digivibe MX® or EI-Analytic™. Select the pixel you want to analyze and get the temperature trend at that point.

Digivibe MX® and EI-Analytic™ are compatible with all our PHANTOM® condition monitoring sensors, including the new PHANTOM® Thermal Camera. In addition, the software can connect to the cloud or any local database to analyze the data sent by your PHANTOM® sensors.

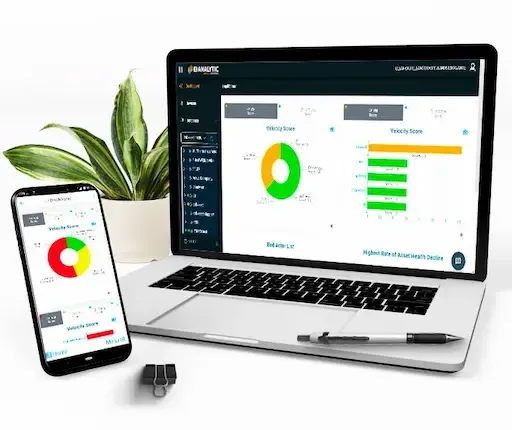

Web Application for PHANTOM®

We created EI-Analytic™ so that you can view your machinery without having to install any additional programs. Just log in and review your data, trends, and more. You can also change the configurations from the site and check the battery life of all your PHANTOM® devices, as well as monitor vibration, thermal camera status, current, and other condition monitoring sensors.

Get your 1GB Free EI-Analytic™ Account now!

Free Access

Get Your PHANTOM® Thermographic Camera Today

Bring infrared imaging into your PHANTOM® workflow with Digivibe MX® in minutes.

Get a Quote

Download Datasheet

Meet Our Products

Wireless Vibration Sensor

10 kHz Fmax
Full waveform and spectrum data
Programmable internal RMS trigger
Sample rate: 25,600 Hz
6,400 resolution lines
Up to 100,000 measurements
Configurable alarm value
IP67 protection grade

Wireless Temperature Sensor

Measures temperature for object and ambient
Measure range from -70 to +380 °C
Configurable alarm value
Standby mode and long battery life
Configure your sensor using your mobile
IP67 protection

Wireless Temperature Sensor

Range of -210 °C to 1800 °C
Measures temperature for object and ambient
Connect any type of thermocouple
Configurable alarm value
Standby mode and long battery life
IP67 protection
2 replaceable LiON AAA batteries
