PHANTOM® Gateway – ERBESSD INSTRUMENTS®

Full Control in One Place

The new PHANTOM® Gateway 2.0 will give you full control of your analysis system in one easy-to-use place. It evolves the way you monitor the condition of your machines with its new features, centralizing all the information you need in a single administration panel.

The PHANTOM® Gateway 2.0 offers features unmatched in the market including: offline mode, cloud connectivity, Modbus TCP/IP communication, MQTT protocol, OPC communication, mass configurations, simultaneous collection and more!

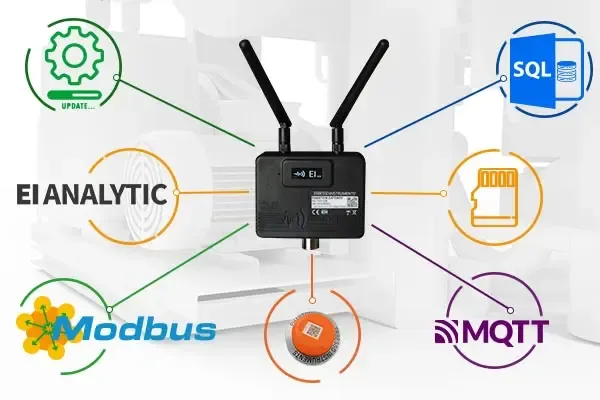

Centralized Administration

With the new PHANTOM® Gateway 2.0 you will be able to manage all your sensor data from one place. Thanks to its immense processing power, it allows you to make massive modifications to the collection times, settings, and alarms of all sensors in the area.

Visualize the data in real time from anywhere on your local network or anywhere in the world using EI-Analytic™. View the current status of your machines with its simple and intuitive interface.

In addition, collect on-demand data with the click of a button and view the signal in your database in seconds.

Offline Collection

Our new PHANTOM® Gateway 2.0 can store up to 100,000 measurements completely offline. This will allow you to collect data in situations where it would normally be impossible for any other condition monitoring system.

Collect data while keeping all the date, time, machine, analysis point and equipment status data; then download the information to your computer or upload it to our EI-Analytic™ cloud. That’s it! You’re ready to continue collecting data while your sensor continues to collect data in its stand-alone mode.

Modbus TCP/IP Communication

The Modbus TCP/IP communication protocol you already know and trust is now integrated directly into our new Gateway 2.0. With this advancement, you can receive post-processed information directly into your automation system including:

Speed
Acceleration
Acceleration envelope
Displacement
Temperature
RPM
Electrical current

More Than a Receiver

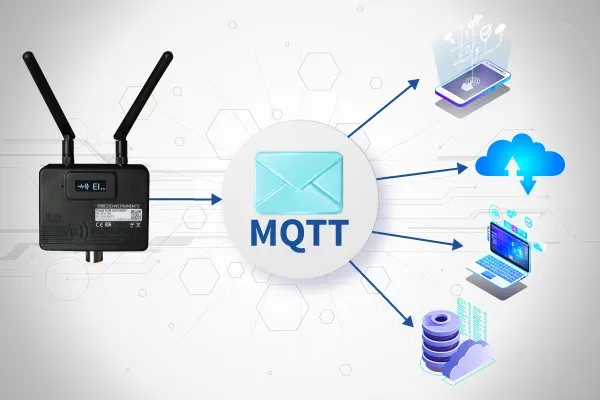

MQTT & OPC Protocol

MQTT is one of the most widely used communication protocols in IoT, compatible with services from large companies such as Amazon and Microsoft, opening the door to easier integration with pre-existing platforms in virtually any industry. Additionally, OPC support enables vital automation systems with reliable data collection in very small time intervals.

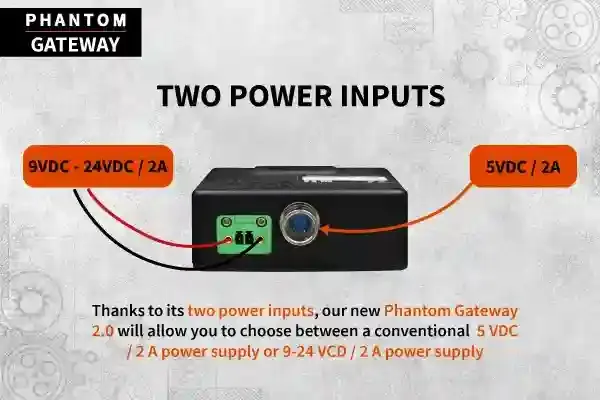

Multiple Power Supply

Our PHANTOM® Gateway 2.0 literally puts the power in your hands, with multiple power supply alternatives through two inputs. Use the conventional 5 VDC at 2 A power supply or any available source with its new 9 to 24 VDC at 2 A input. The new generation gateway gives you the freedom to choose the power supply that is most convenient for you.

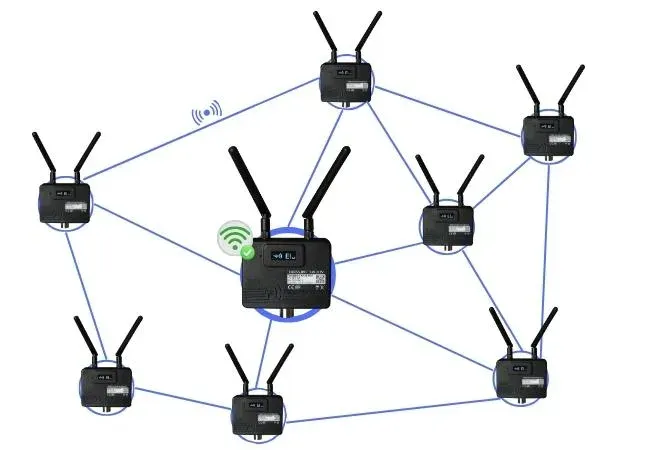

Secure Repeater Management

Our Gateway 2.0 can create a secure repeater network, fully managed from an intuitive control panel that protects all network communications against unauthorized access. Each repeater adheres to stringent security protocols, safeguarding the network’s integrity — ideal for both small offices and large-scale industrial settings.

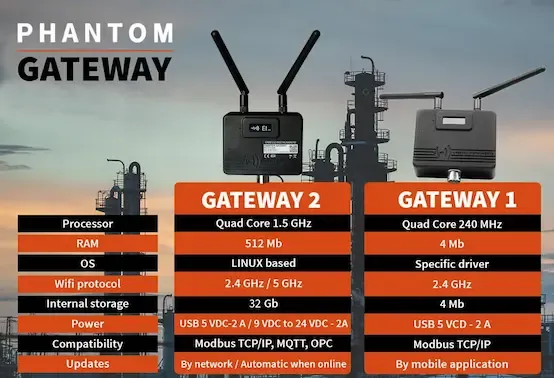

Gateway 2.0 hardware and software comparison

Gateway Evolution

Learn about the main hardware and software improvements we offer you with our new PHANTOM® Gateway 2.0 version, designed to centralize and modernize the way you monitor the condition of your machines.

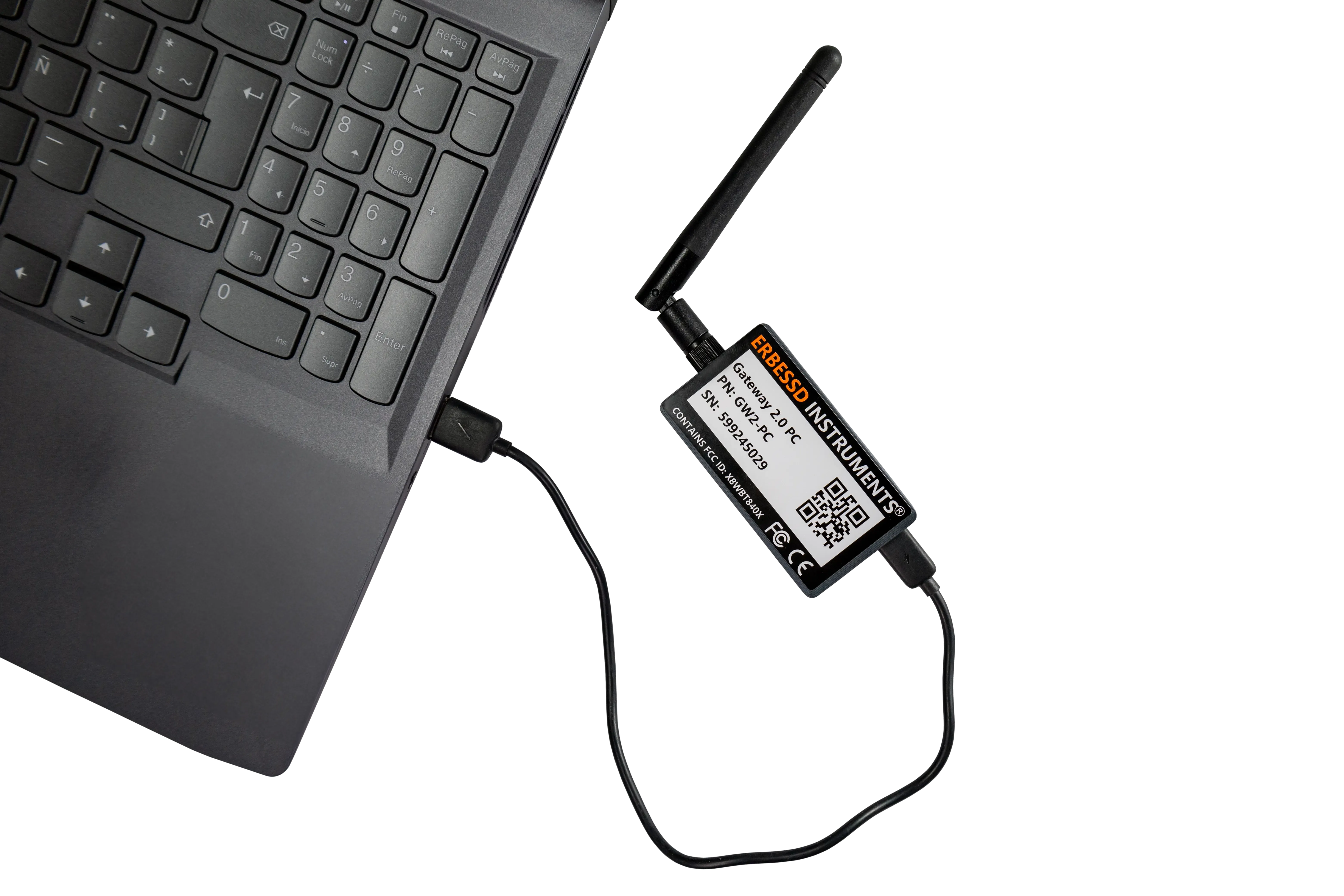

USB Gateway (Portable Version)

Experience the full power of our Gateway 2.0 in a compact, portable form. The new USB Gateway brings all the advanced features and security of the Gateway 2.0, now conveniently sized to connect directly to your computer. This innovative version ensures secure network management on the go, maintaining the same level of control and protection as the original.

Documentation

Datasheets, manuals, and setup guides to get the most out of your PHANTOM® Gateway 2.0.

Specs & manuals

Datasheet

User Manual

Release Notes

Repeater Configuration
