Balancing Machine for Turbo chargers and light-weight rotors

Designed for Turbo Chargers & Light-Weight Rotors

The digital system provides easy and reliable functions for the balancing process. Additionally, its intuitive interface provides fast balancing process capabilities.

Thanks to its very intuitive balancing calculator, you won’t need to do difficult calculations anymore.

Balance More

Technical Data

Request a Quote

Turbo Balancing Machine Features

Balance assemblies without trial masses.
Adjustable RPM with speed driver.
Easy to use and easy to adjust.
Adjustable pulleys.
Manual adjustment of the transmission belt.
Bearing supports to minimize mechanical losses.
Bearings and nylon supports.
Laser RPM sensor.
Vibration sensors isolated to prevent corrosion.

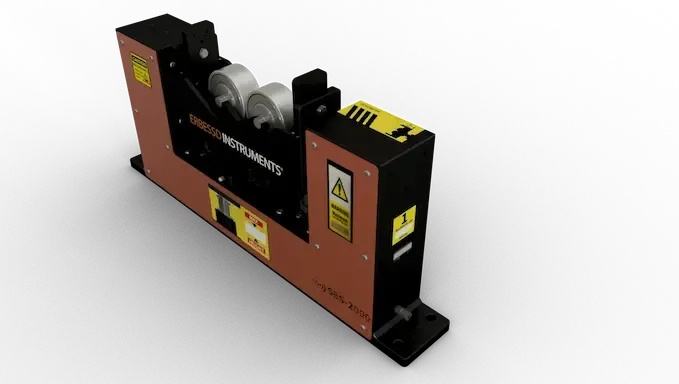

Soft Bearing Balancing Machine – Accurate

The ultra-light soft bearing suspensions (SBS) are designed to allow low-speed balancing on high-speed and light-weight rotors. Furthermore, the SBS minimizes inertia and mechanical losses thanks to its aluminum components.

EI-30 Turbo Balancing Machine incorporates 2 suspensions that support up to 30kg (15kg each). The SBS mechanism significantly improves balancing results with the highest precision on any compatible rotor.

With this system, all balancing tasks are performed between 1,000 and 5,000 RPM because the mechanics allow the rotor to spin around its center of gravity rather than its geometric center.

DigivibeMX 26 Balance dynamic balancing software

DigivibeMX® 26 Balance Dynamic Balancing System Included

DigivibeMX® 26 Balance is Erbessd Instruments’ latest dynamic balancing system, built to make rotor balancing faster, easier, and more accurate. It pairs perfectly with the EI-30 to deliver multi-plane balancing and real-time analysis in one package.

Single-plane, dual-plane, and static & couple balancing — each mode runs on its own independent calculation engine.
Enhanced Balancing Wizard with 3D mass and inertia calculations, automatic shaft-mass estimation and freely positioned counterweights.
Balancing calculator with add / remove / split / combine correction mass, drill-hole depth, trial-mass calculation and central-mass corrections.
Automatic saving of sessions and vibration recordings, with vector data management and .anl import.
Real-time FFT monitoring with selectable downsampling for long recordings — capture minutes or hours of vibration data without exhausting memory.
Built-in ISO 21940 balance-quality chart for one-click residual-unbalance verification and refreshed balancing reports.

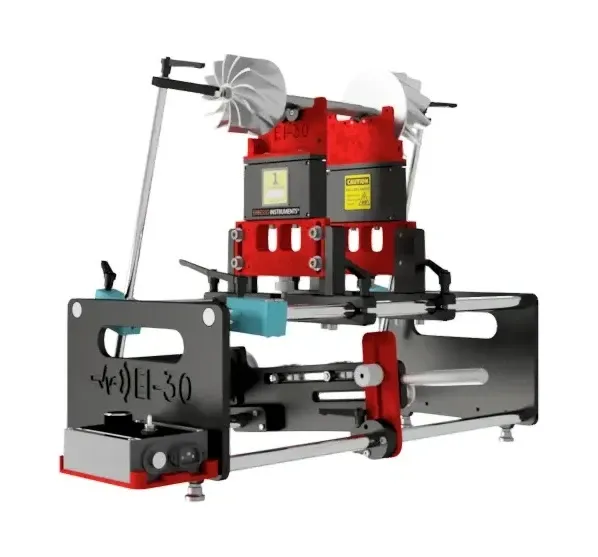

EI-30 turbo balancing machine handling different rotor types

Easy Balancing - Balance More

It has never been so easy to balance any kind of rotor!

Because work never ends, we know that you will surely need to balance other types of parts. That is why the EI-30 Turbo Balancing Machine also balances pulleys, small crankshafts, motor armatures and any kind of rotors that you can mount on the machine.

You can always adapt the roller supports of the machine so rotors with specific dimensions can be mounted. Above all, use the axial and negative load supports to secure the rotor.

EI-30 Datasheet

Get the Full Specifications

Dimensions, balancing tolerances, supported rotor types and complete operating specifications — all in a single PDF.

Download Datasheet
