EI-Pulley Ace

Sheave Alignment System

Undeniable accuracy and reliability — delivered with the sheave alignment system.

pulley_ace_hero_304x289

Effortless and Precise Belt & Sheave Alignment

Introducing EI-Pulley Ace™ — your ultimate solution for effortless and precise belt and sheave alignment. While other tools promise results, our system stands out with its simplicity and accuracy. Say goodbye to gimmicks; with over 35 years of proven experience, we offer peace of mind, reliability, and undeniable precision. Get the job done quickly and efficiently with EI-Pulley Ace™ — the trusted choice for sheave alignment.

Request a Quote
See what's included

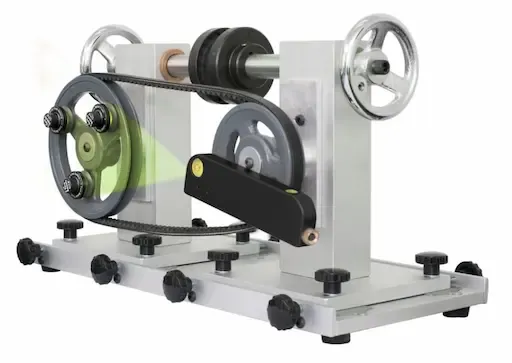

pulley_ace_black_512x363

Exciting Features

Designed around an ultra-green laser with 400% greater visibility than red beam lasers, EI-Pulley Ace combines lab-grade accuracy with a compact form factor built for tight spaces and fast setup.

Decrease Vibration

Reduce vibrations in any pulley-sheave system. Engineered for optimal performance, our solution minimizes vibrations, enhancing stability, efficiency, and equipment longevity.

Minimize Bearing Wear

A state-of-the-art pulley alignment system, designed to minimize belt and motor bearing wear across the entire drivetrain.

Compact Size

Engineered for effortless use on small diameter sheaves. Its sleek design and user-friendly interface make it the ideal solution for precision alignment in tight spaces with a fast setup.

Faster & More Efficient

An improvement over dial indicators — ultra-green laser technology with visibility 400% greater than red beam lasers ensures precise alignment with unmatched clarity.

Laser Level

Equipped with laser level capabilities, enabling you to easily check the height and flatness of motor and gearbox mounting plates.

Versatile Alignment

Aligns belts, pulleys, sheaves, sprockets, gear trains, rollers, platforms, conveyors, and other plant equipment.

wisermini_01

EI WiSER® 3X Mini

Learn more about the most portable wireless accelerometers on the market — vibration analysis in the palm of your hand.

What’s Included With Your Sheave Alignment

EI-Pulley Ace

EI-Pulley Ace
  • Laser Power: Class II
  • Power: 2 AAA batteries — up to 10 hours
  • Level Vial: 40 Arc Min
  • Beam Spread: 60” @ 3 ft
  • Line Width: 1/16” @ 30 in
  • Accuracy: 0.070” (7× industry standard)
  • Dimensions: 1.75” × 6.75” × 0.625” (144 × 171 × 15 mm)

Alignment Knobs (3)

Alignment Knobs (3)
  • Retro-reflective
  • Adjustable over 1”
  • Dimensions: 1 1/4” dia. × 1” length
  • Body: High-grade hard-anodized aluminum
  • Magnets: Nickel-plated rare earth
  • Rating: IP67

Case

Case
  • Rigid plastic outer shell
  • Soft-foam filled interior
  • Protects all components during transport and field storage

Ready to Order?

Get in touch for a tailored quote, or browse our store for stock availability.

MSRP: $1,899.95 USD
