SBS-Series™

Overview

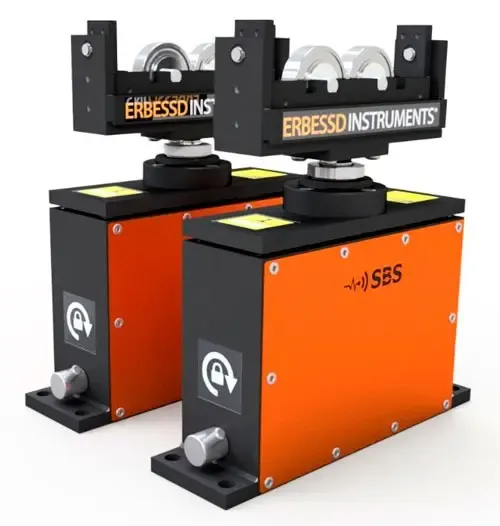

SBS-1000 is a balancing support kit intended to provide you a way to build your own balancing machine at a very low cost with very high performances.

The SBS-1000 can support up to 1,000 kg (500 kg each support), and with its two roller positions, it allows shaft diameters of 180 mm (7 in). Also has an elevator screw to adjust the position in case the tracks rotor supports have different diameters up to 25.4 mm (1 in) and a swinging movement for auto-alignment.

Balancing is done at higher frequencies than the suspension’s resonance frequency. With all these characteristics, the system allows the rotor to spin around its center of gravity instead of its geometric center.

The rolling elements have a swing system with a pitch up to 10°. This way the SBS-1000 gets aligned automatically with the shaft to prevent distortion on the shaft’s rolling surface.

Main features

• Max Load: 1,000 kg (2,200 lbs) Pair / 500 kg (1,100 lbs) Each
• Dimensions (L x W x H): 331 mm x 89 mm x 356 mm (13 in x 3.75 in x 14 in)
• Weight: 23 kg (50.6 lbs) /Unit
• Max Axial Load: 76.5 N (16.53 lbs)
• Min Bearings Surface Contact: 16 mm (0.630 in)
• Max Radial Displacement: 20 mm (0.788 in)
• Max Shaft Diameter in Supports: 180 mm (7 in)
• Lock System: Yes
• Elevation Screw: 12.7 mm (0.5 in)
• Accelerometer: Optional
