SBS-Series™

Overview

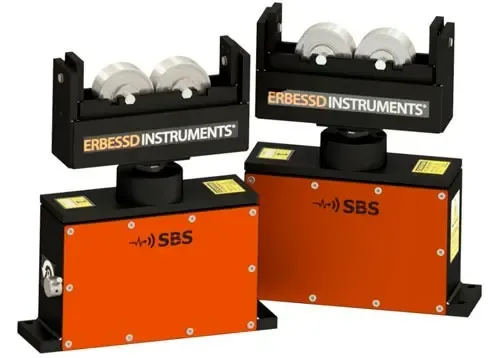

SBS-2000 is a balancing support kit intended to provide you a way to build your own balancing machine at a very low cost with very high performances.

For a better contact between the shaft and the SBS-2000, the rolling elements have a swing system with a pitch up to 10 degrees, this way the SBS-2000 get aligned automatically with the shaft to prevent distortion on the shaft’s rolling superficies.

Between the roller’s work supports and the soft bearing suspension, there is a lifting screw with ½ inch range to allow the rotor’s axis to be in horizontal position. This feature allows independency among planes for 2 plane balancing.

The SBS-2000 can support up to 2,000 kg (1,000 kg each support) and with its two roller positions they allow shaft diameters of 228 mm (9 in). They also have an elevator screw to adjust the position in case the rotor track supports have different diameters up to 38 mm (1.5 in).

Main features

• Max Load: 2,000 kg (4,400 lbs) Pair / 1,000 kg (2,200 lbs) Each
• Dimensions (L x W x H): 331 mm x 89 mm x 356 mm (13 i x 3.75 in x 14 in)
• Weight: 46 kg (101 lbs) /Unit
• Max Axial Load: 76.5 N (16.53 lbf)
• Min Bearing Surface Contact: 36.5 mm (1.437 in)
• Max Radial Displacement: 30 mm (1.18 in)
• Max Shaft Diameter in Supports: 238 mm (9.3 in)
• Lock system: Yes
• Elevation Screw: 38 mm (1.5 in)
• Accelerometer: Optional
